Ⅰ、Introduction

TubesT provides specialized cutting path solutions for complex tube processing tasks.

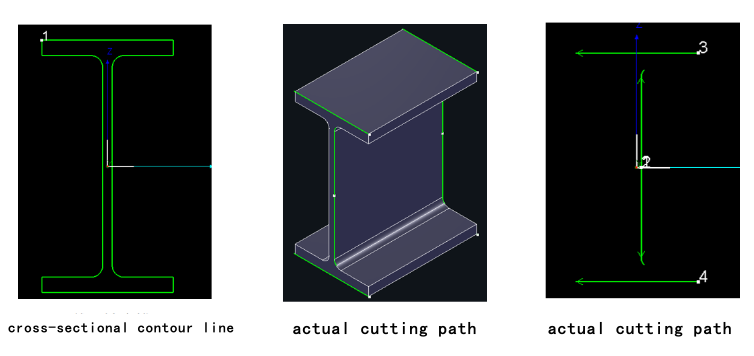

When processing tubular materials with closed cross-sectional shapes (e.g., round or rectangular pipes), the actual cutting path precisely follows the cross-sectional contour line. However, for open-section structural profiles like H-beams and L-shaped angles (as shown in the H-beam example below), the cutting path differs significantly from the visible contour lines.

The passes that are dismantled from the original closed path (such as being split and cut) belong to the special paths (Profile Path) of the original path.

Key Features:

• • Automatically crop the original closed path to the right position.

• •  Leads In/Out are added automatically. ( The blue part of the image above )
  • Automatically groups actual cutting path into a small group and sorts them within the group. ( Note: The 【Sort】 button on the main interface takes effect for a single pass in the group.  Only groups will be sorted from group to group. ）

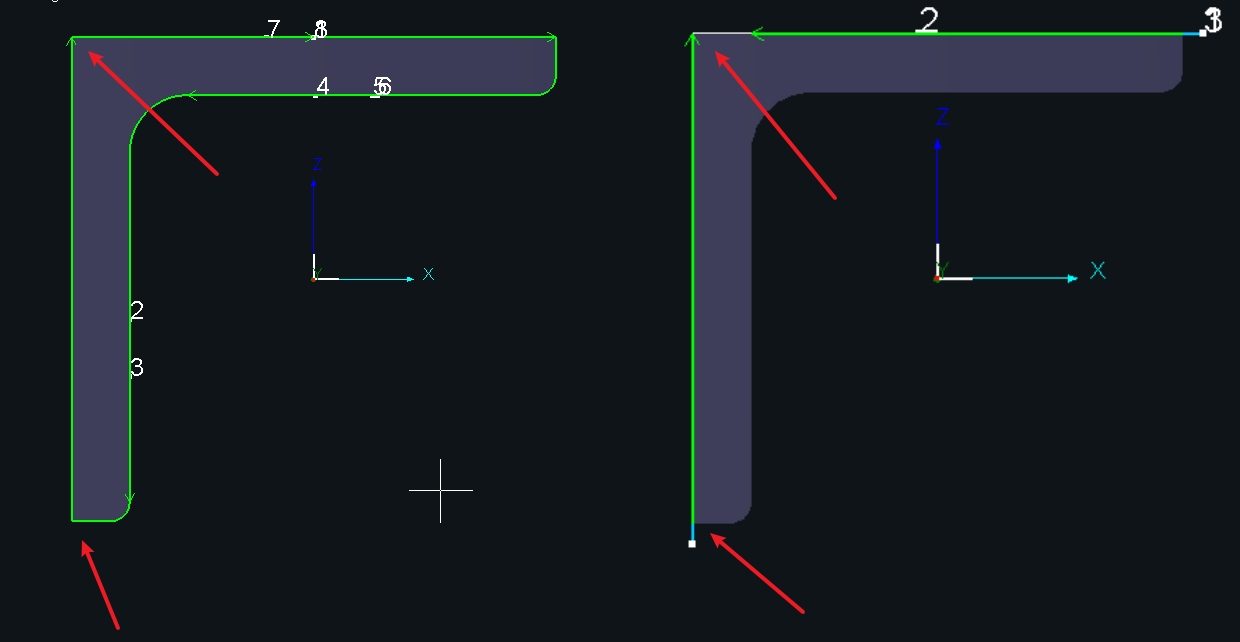

  • After the software automatically processes it, the original contour line is displayed in white segments, the white line is not actually cut, and the Profile Path is displayed in green, and it will actually be processed.
  • In addition to the Compensation, MicroJoint, Cooling point, Add Bevel , other technique need to be added in the【Profile Path】and other function windows.

Ⅱ、Usage Instructions

1. How do I automatically generate Profile Path when importing/drawing?

Drawing source	timing	manipulation	effect

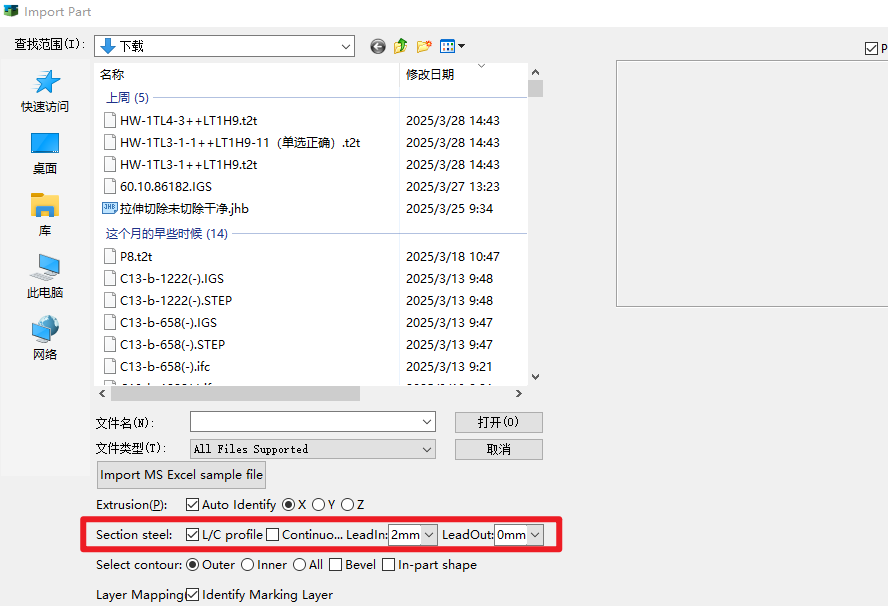

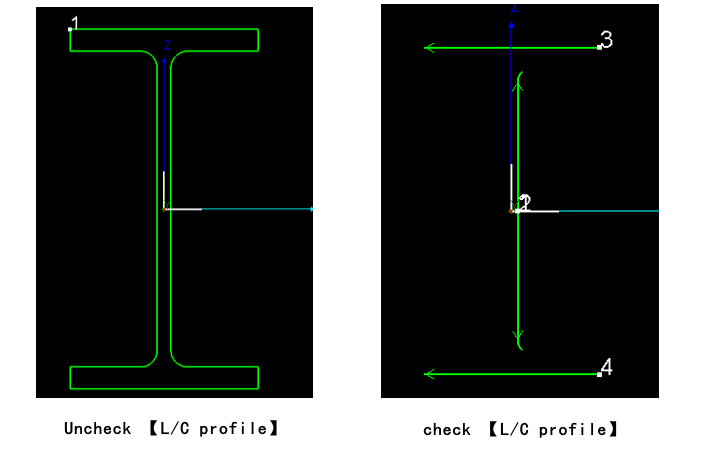

External drawing import (Drawing software includes SolidWorks, tekla, etc.)	importing	Select 【L/C profile】 and set the length of the leadIn/leadOut .

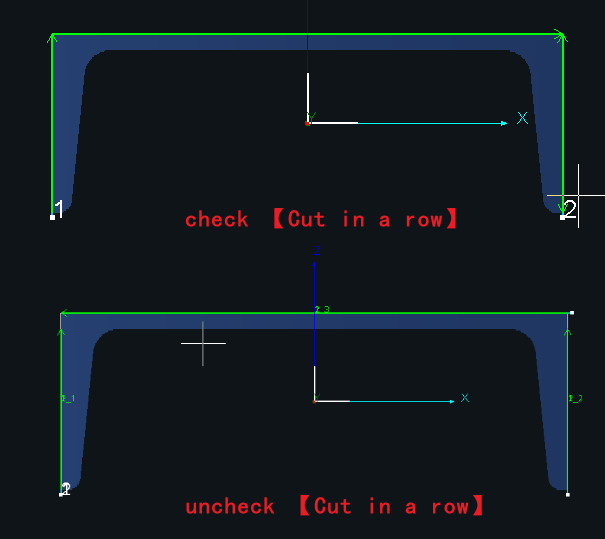

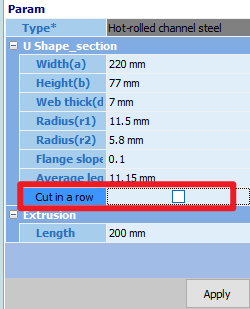

TubesT is drawn internally	drawing	Don't  select 【Cut in a row】, a special toolpath will be automatically generated

2.If I don't check this box during import, how can I automatically generate special toolpaths after importing?

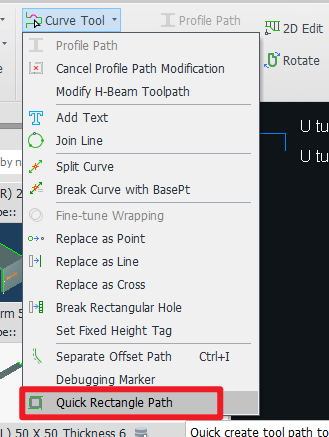

If you want to automatically split, use 【Quick Rectangle Path】, note that this function can only take effect on a single part, if there are many parts, it is recommended to re-import, and it will take effect automatically when importing.

If you want to split it manually, see the three features in the table below.

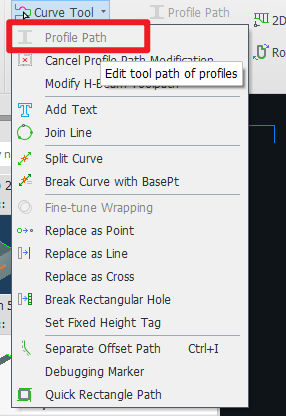

3.How do I manually adjust a Profile Path after importing/drawing?

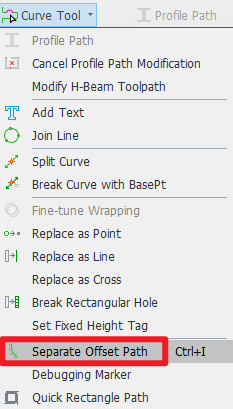

Note: If you want to manually trim the toolpath, you need to follow the instructions below in each small function, do not easily use 【Separate Offset Path】 to re-crop the curve independently. Each section of the tool path is independent, no longer a group, the sort button on the main interface will sort each small section, so pay attention to check the tool sequence after using 【Separate Offset Path】. However, if you edit it in the following function, the multi-section toolpath of each section will still be a group after saving, and the main interface sorting will still only sort the group and the group, and will not interfere with the order within the group.
