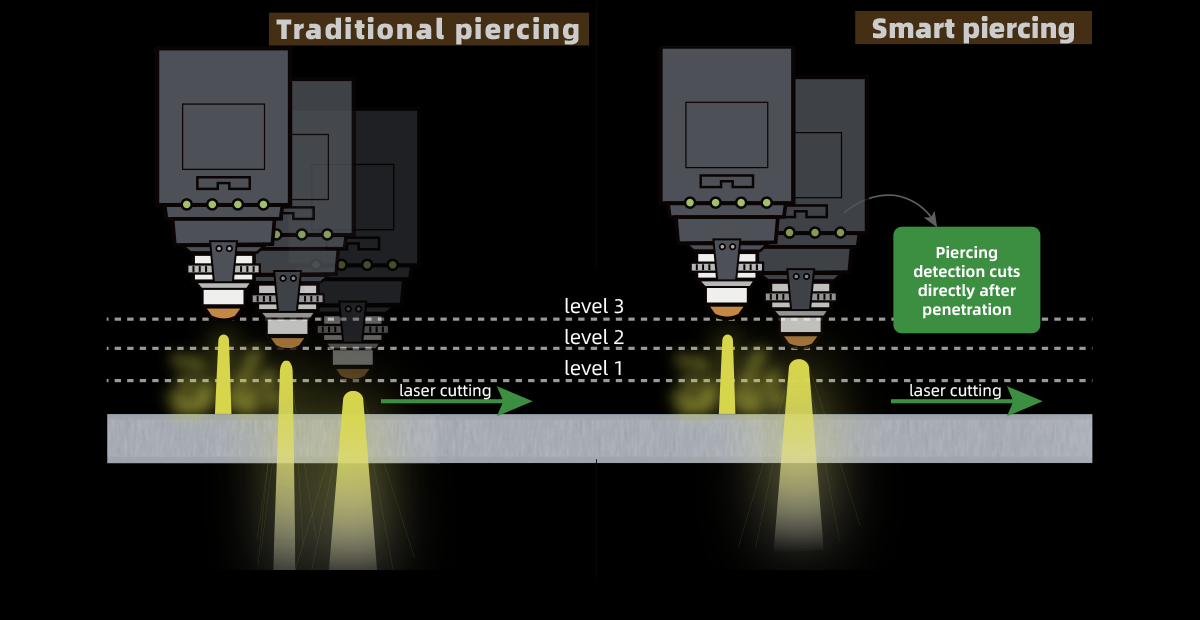

Smart Piercing
Monitor the piercing and cut immediately after piercing to improve the efficiency and reduce costs.
-

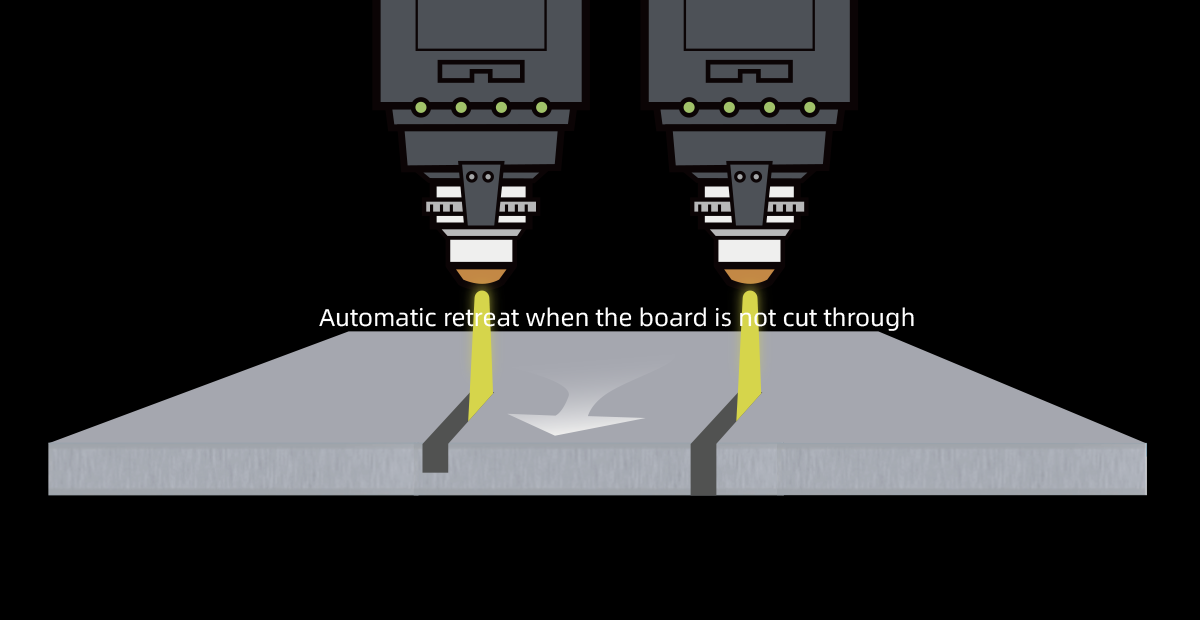

Auto ReCut
If an part is not cut through, the cutting head will return and cut it again.
-

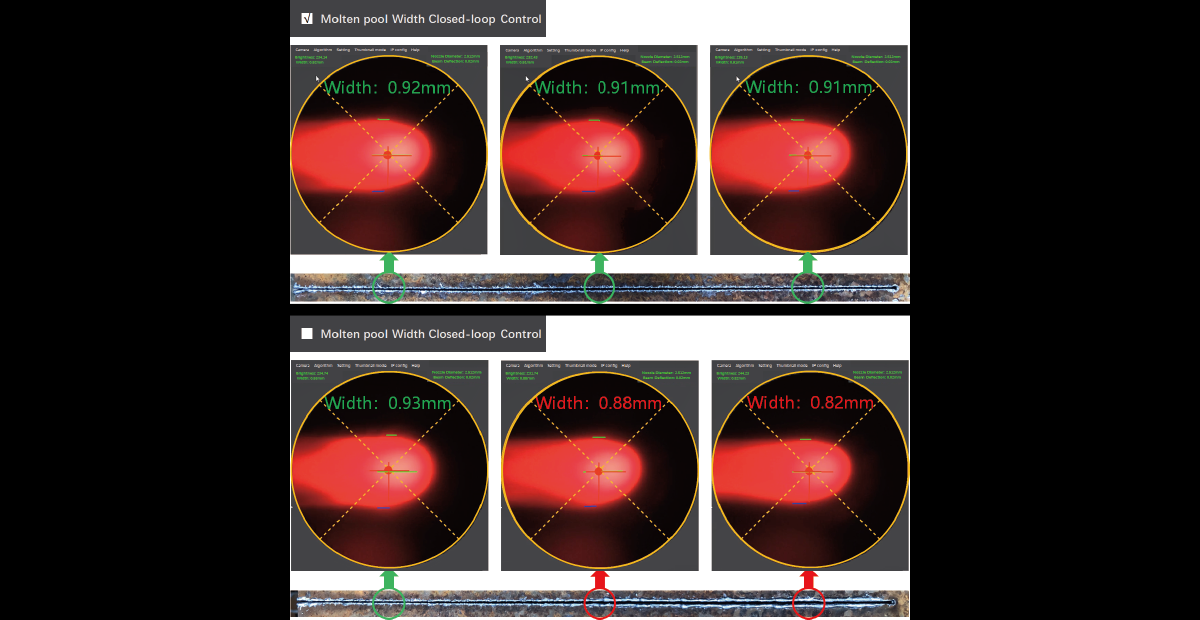

Cutting Path Monitoring
Solve the pain point of temperature drift by monitoring the seam width in real time during the cutting process Intelligent adjustment of focus to ensure consistent cutting results over a long period of time.
-

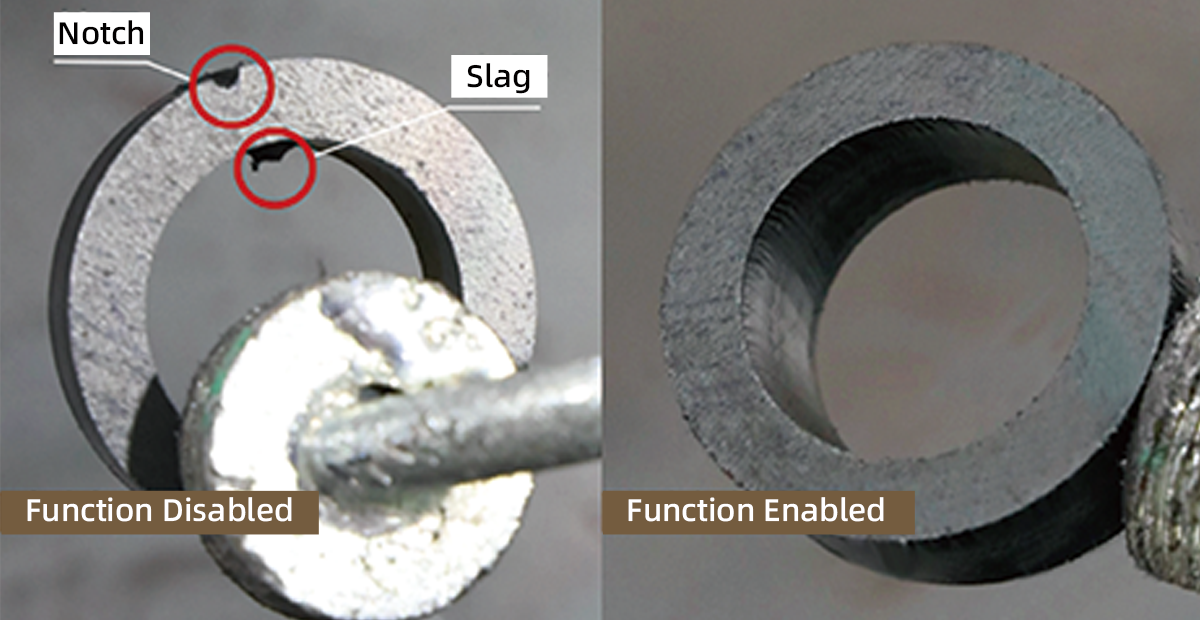

Smart LaserOff
Section and surface finish of inner and outer contours of parts are smooth without slag.
-
Smart Piercing
-
Auto ReCut
-
Cutting Path Monitoring
-
Smart LaserOff
Model & Specifications
-

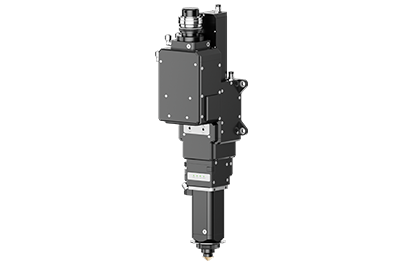

BLTA140M
-
BLTA160M
-
BLTA180M
-
Specifications
Power Range
≤80kW
Fiber Interface
Q+/ADD
Focal Distance
300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤100kW
Fiber Interface
Q+/ADD
Focal Distance
300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤120kW
Fiber Interface
ADD/QP24
Focal Distance
300mm
Laser Wavelength
1030~1090nm
