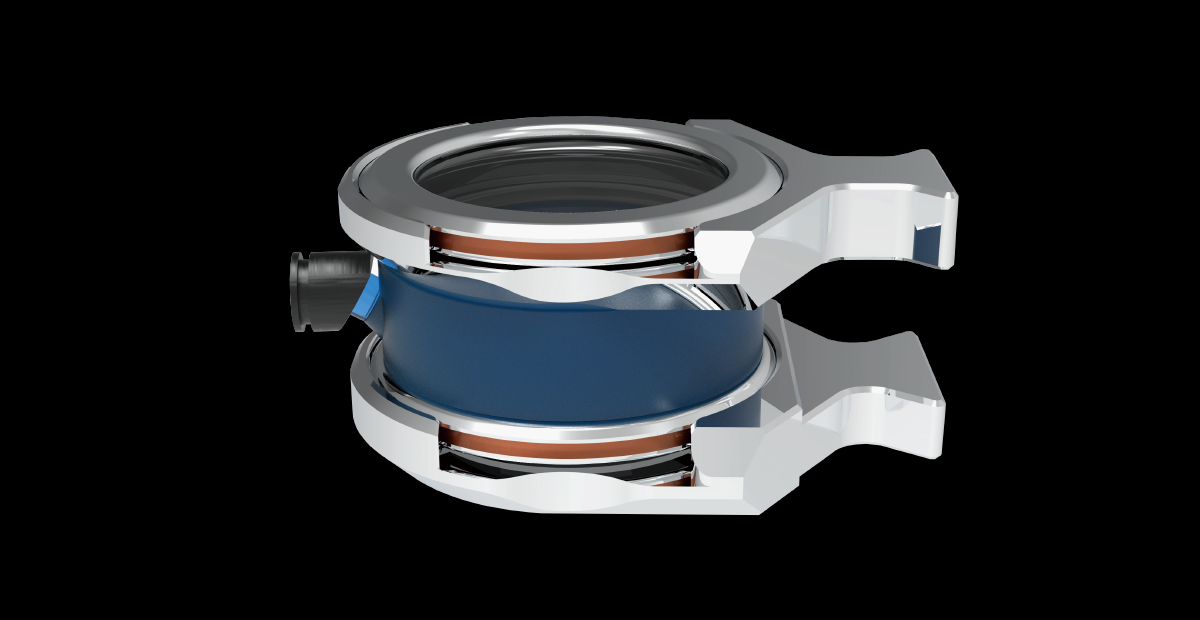

Bottom Protective Cartridge Sealing
Monitor the sealing of the protective windows cartridge for stable production.
-

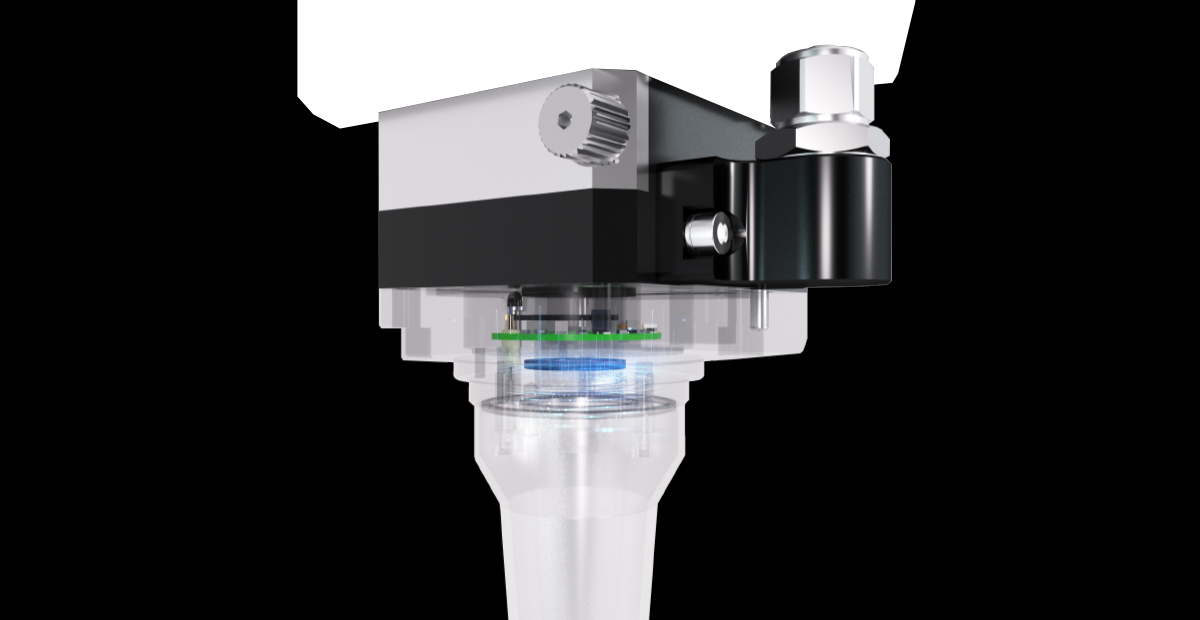

Built-In Amplifier
Enhance the anti-interference capability.
-

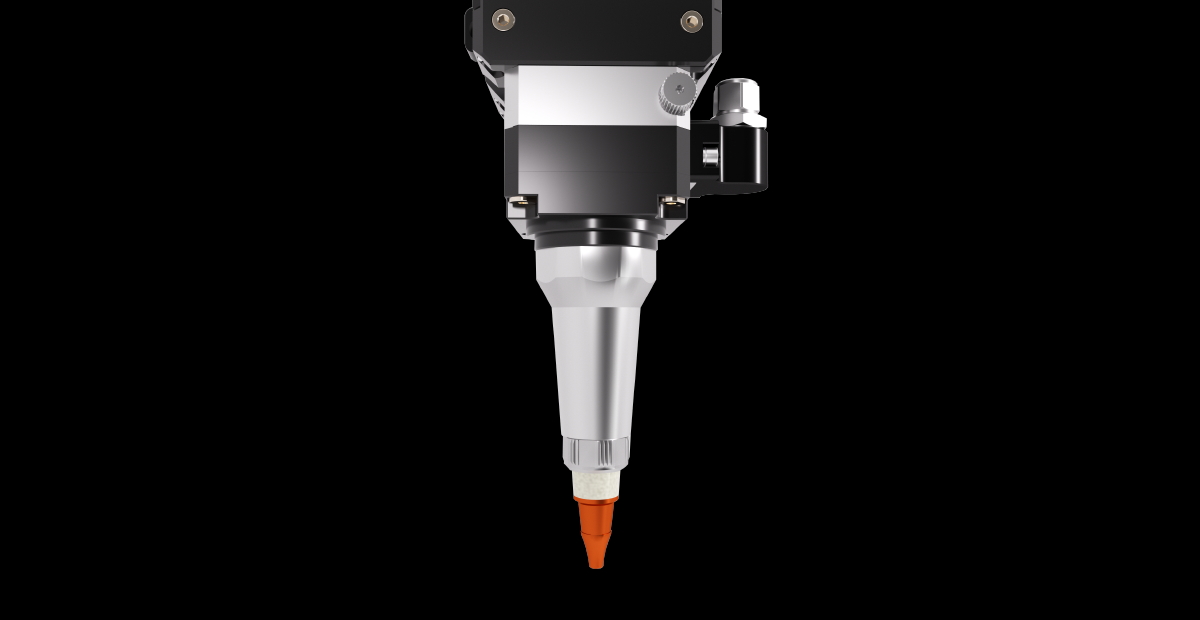

Three-Dimensional Sensing Head
Can achieve cutting of different types of pipes. Round pipe, square pipe, channel steel and I-beam etc.
-

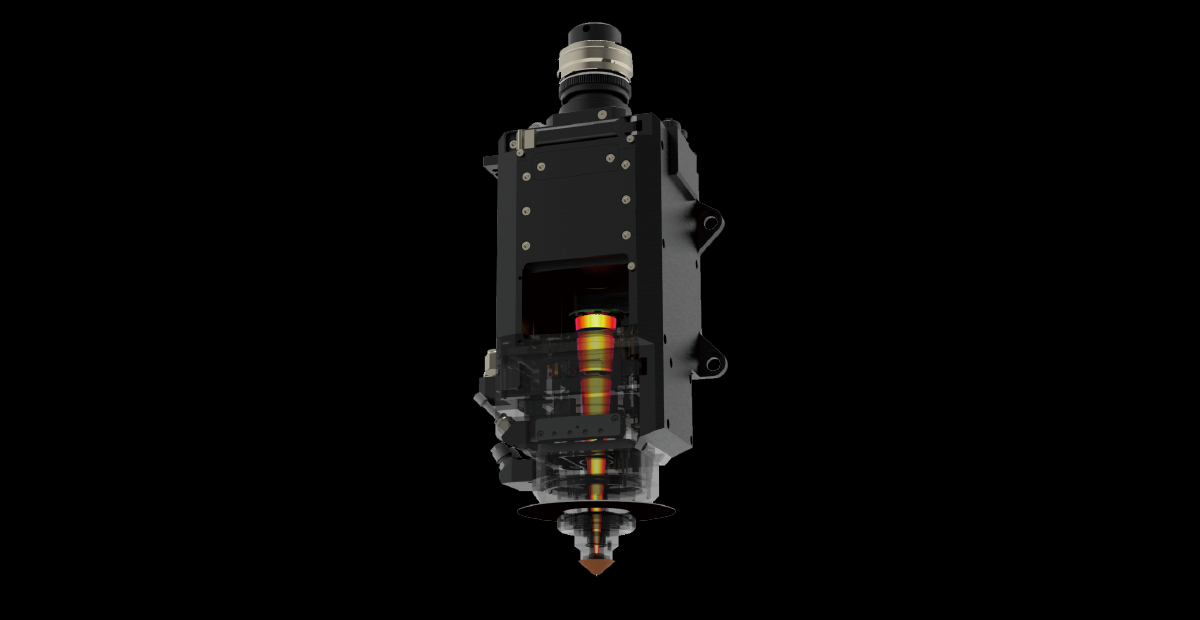

Protective Window Anti-Explosion
Contamination sensor and system algorithms are upgraded to monitor the stray light of the protective window in real-time.
-

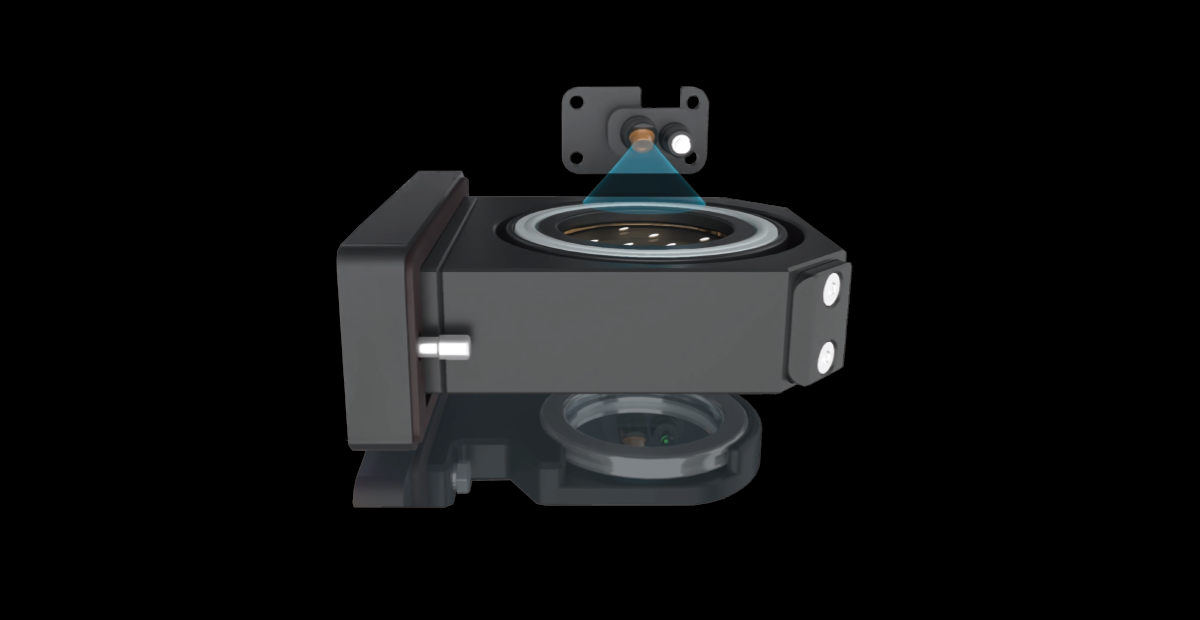

Focusing Lens Monitoring
Under real-time monitoring of the focusing lens temperature during cutting, the system will promptly stop and alarm in case of lens contamination, reducing cutting defects caused by contaminated protective window.
-
Bottom Protective Cartridge Sealing
-
Built-In Amplifier
-
Three-Dimensional Sensing Head
-
Protective Window Anti-Explosion
-
Focusing Lens Monitoring
Model & Specifications
-

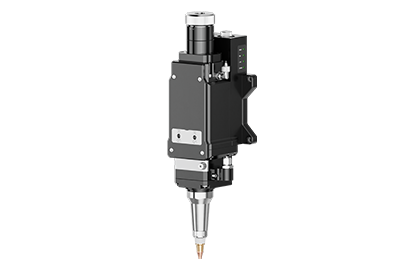

BLT421TS
-

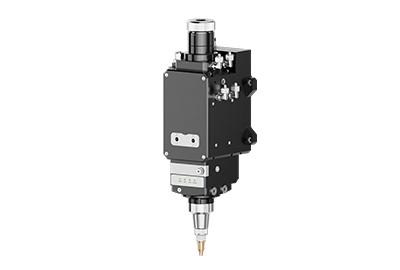

BLT442T
-

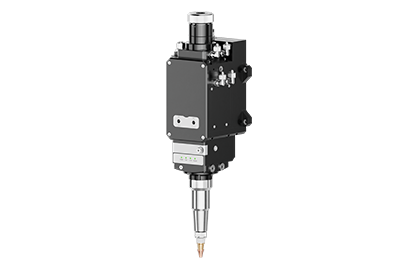

BLT462T
-
Specifications
Power Range
≤8kW
Fiber Interface
QBH/EOC
Focal Distance
200/250mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤15kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
200/250mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤20kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
200/250mm
Laser Wavelength
1030~1090nm
