Smart Draw | Filleting and Chamfering

When drawing in practice, it is often necessary to add fillets or rounds (i.e., chamfers or fillets to the edges of geometric shapes).



Smart Draw offers commands to add rounds and fillets.





How to add a fillet/chamfer



Click Fillet/Chamfer in Smart Draw, you can add one fillet/chamfer by clicking an endpoint.





You can also select multiple shapes and enable the automatic fillet/round feature in the drawing software, the software can automatically add fillets or rounds to applicable locations.





Fillet/Chamfer Parameters

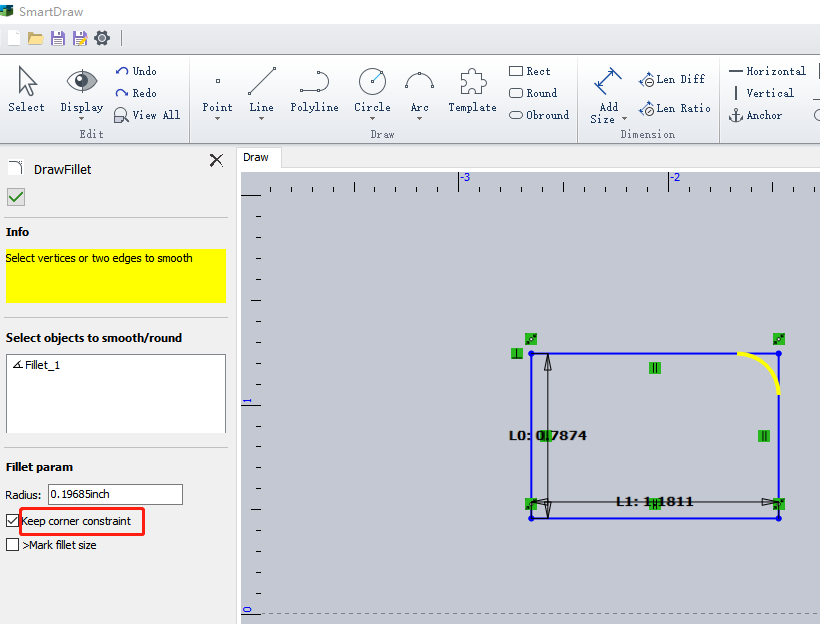

1.Keep corner constraint



If the option "Keep corner constraint" is selected, the constraints will be retained. If not, the constraints will be lost. It is recommended to keep the constraints.

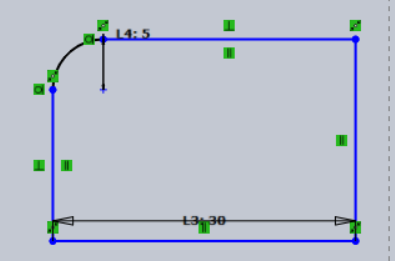

As shown in the figure, for the 20*30 rectangle with constraints, if the "Keep corner constraint" option is not selected, the constraint on the width of 20 will be lost.




If you have more questions, contact us at tubest@fscut.com or join the Whatsapp group.
