How to Improve Holes Position Precision

When there is slight deviation between the holes on the opposite side respectively, you can improve its precision according to the steps below.

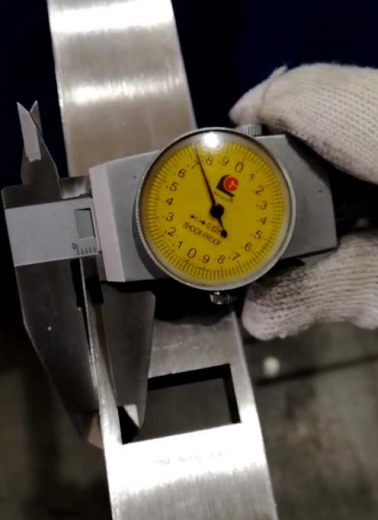

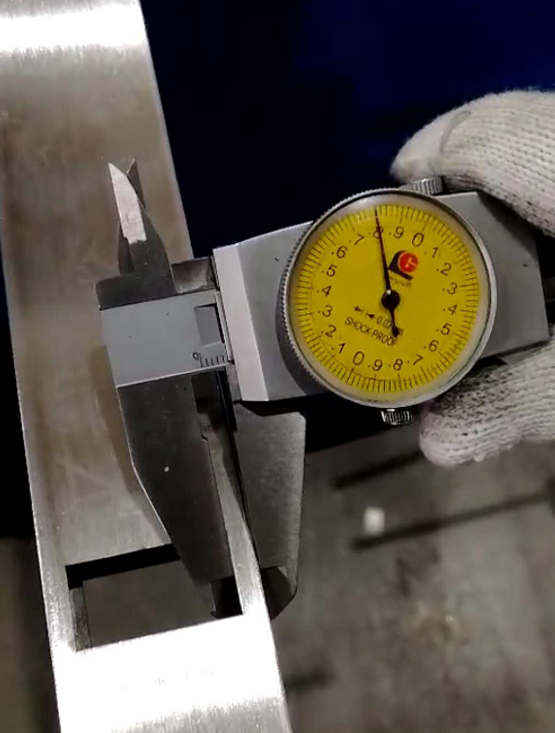

  1. Find a vernier caliper and measure the margin distance for each hole.

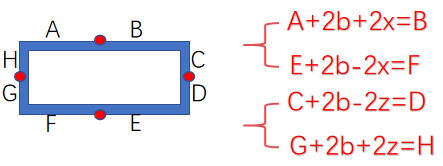

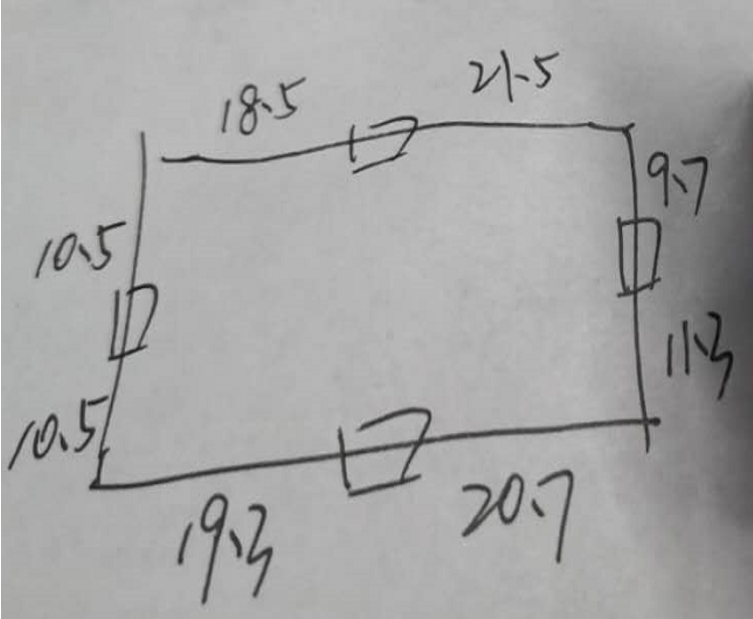

  1. Record the results and draw a diagram as below.

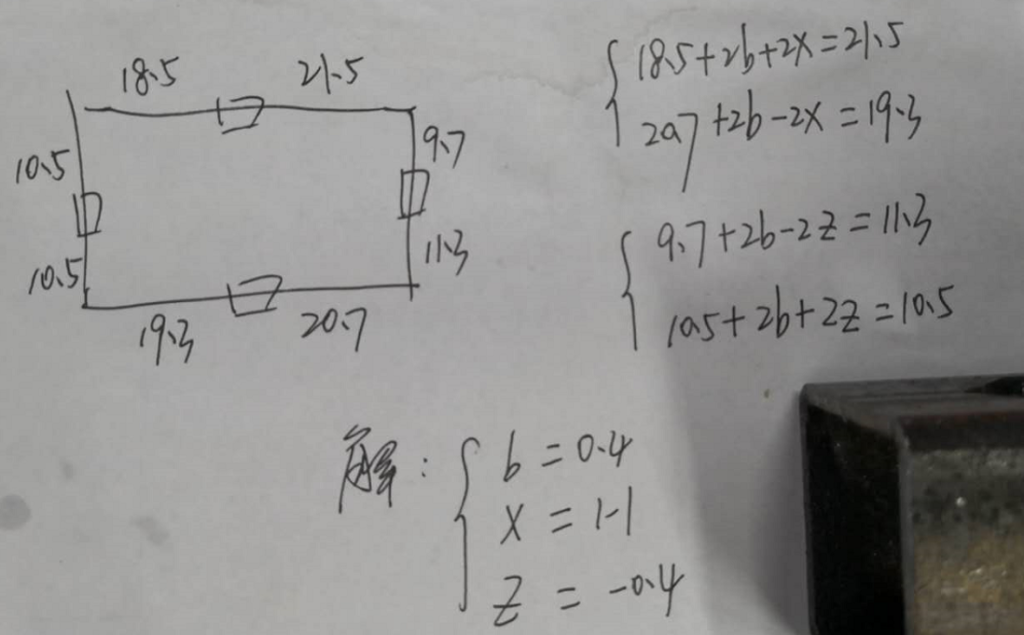

  1. Get an equation and solve it

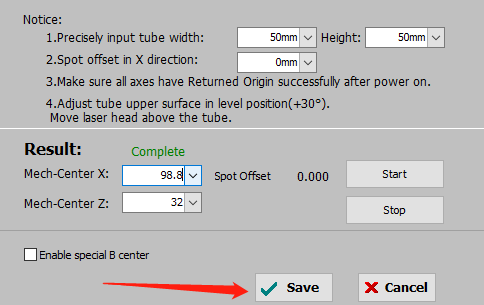

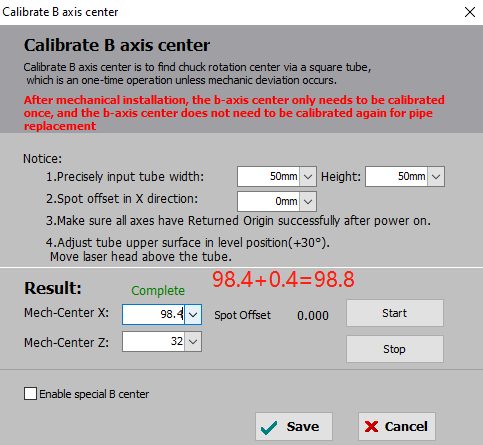

  1. Offset the X coordinate in Calibrate B Axis with the value of B calculated, click Save and exit.

      So the target value is the sum of origin X value and b value you get.

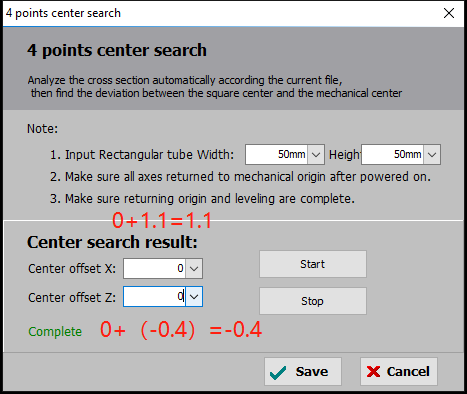

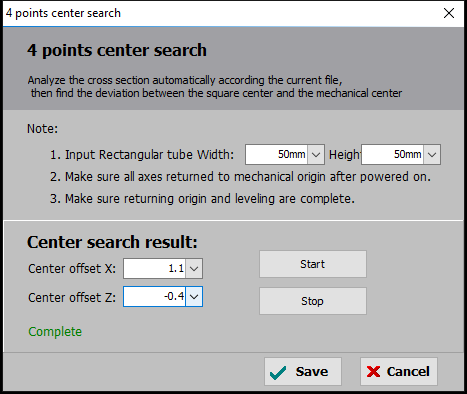

       Then input the x and z in the blank of Auto Center interface.

        Finally, just start cutting and check the cutting result.
