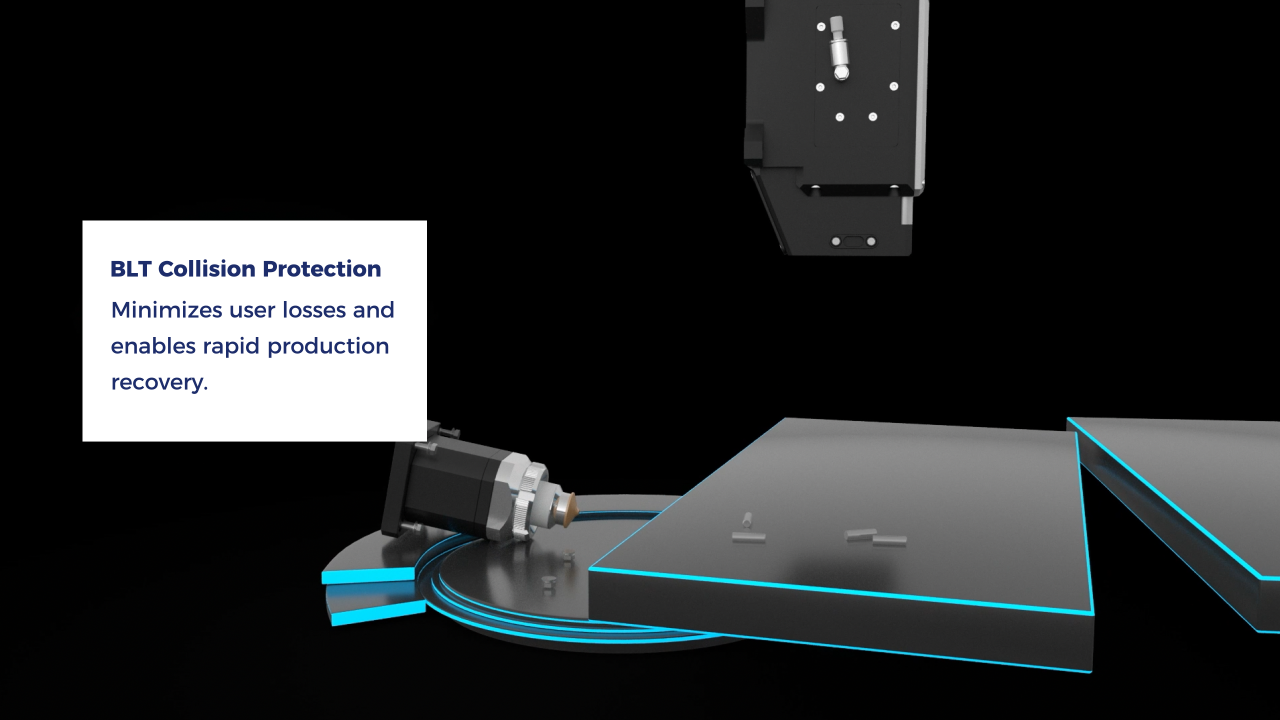

Collision Protection
Protective Screws keep cutting head from damage. No time wasting on Depot Repair.
-

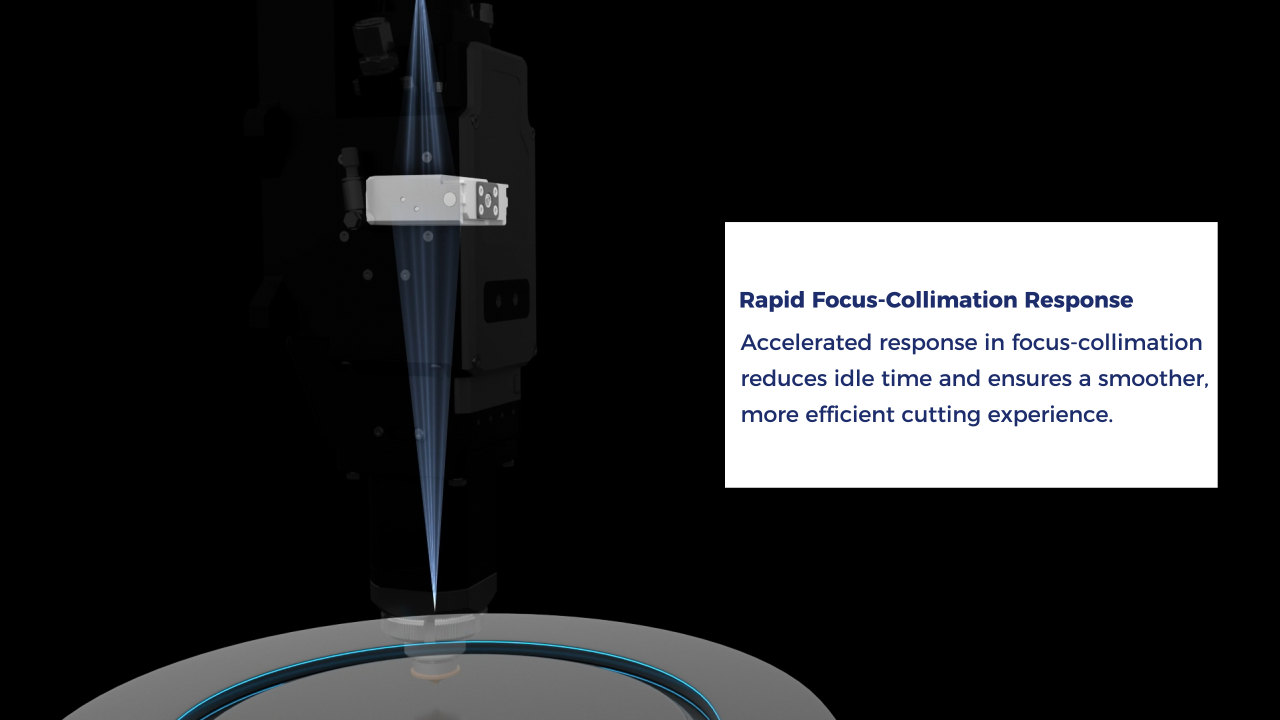

Fast Focusing
Collimating lens is used to adjust the focal position vertically.
-

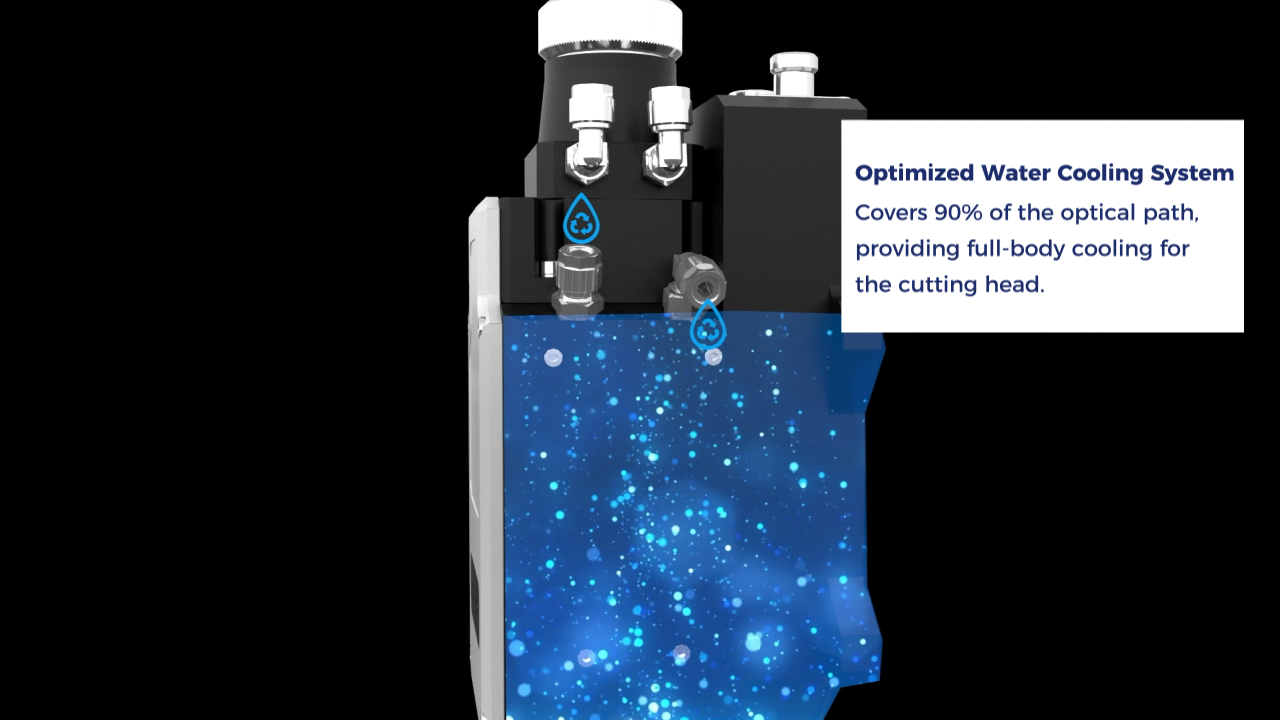

Water Cooling
Cover 90% of the cutting head to improve cutting stability.
-

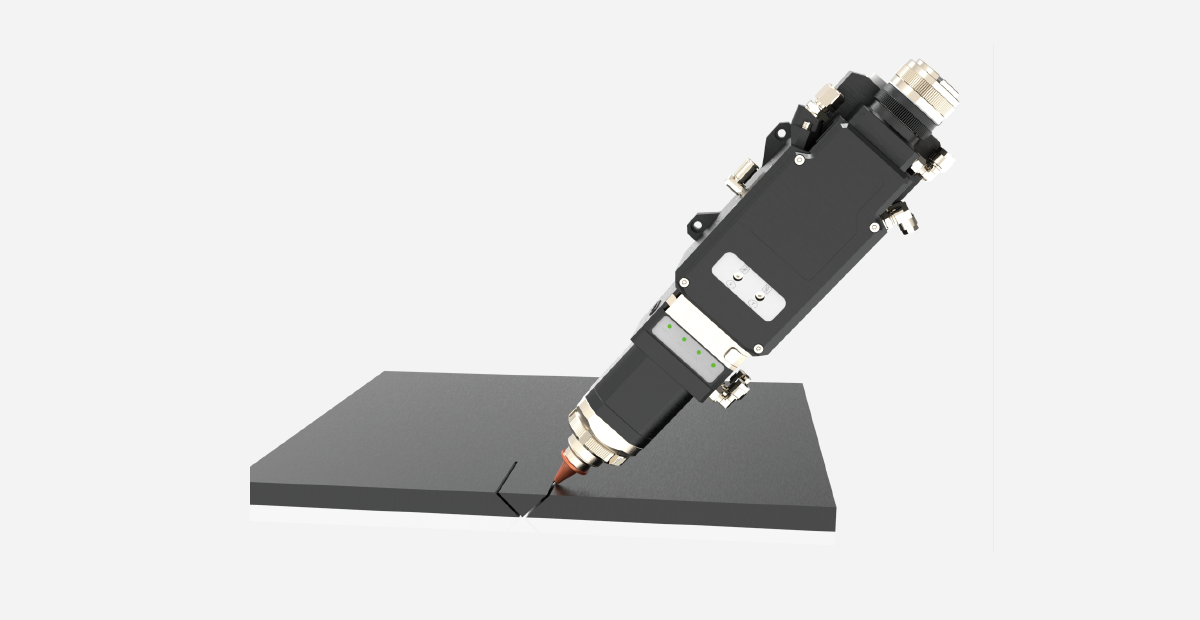

Bevel Cutting
With AB swing axis can support cutting V, Y, X and other types of bevels, maximum ±45° bevel and one time forming, reducing beveling process, reducing cost and increasing efficiency.
-

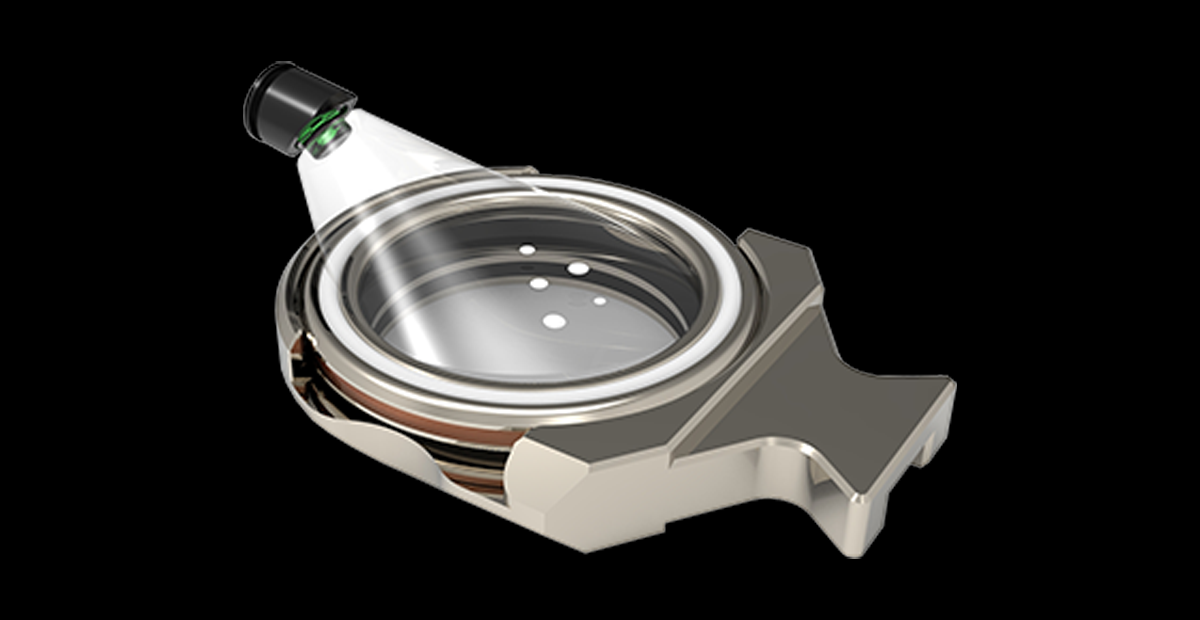

Protective Window Monitoring
Monitor the contamination to avoid its impact on cutting quality.
-
Collision Protection
-
Fast Focusing
-
Water Cooling
-
Bevel Cutting
-
Protective Window Monitoring
Model & Specifications
-

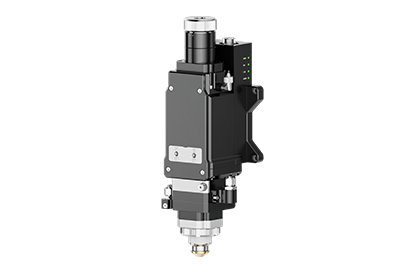

BLT421S
-
BLT442
-

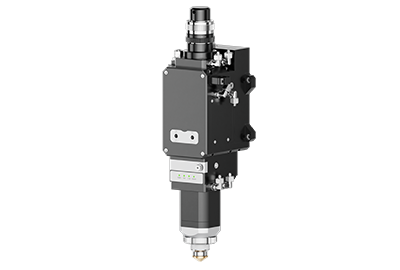

BLT462
-

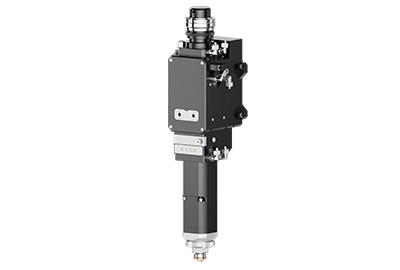

BLT482
-
BLT4102
-
BLT4122
-
Specifications
Power Range
≤8kW
Fiber Interface
QBH/EOC
Focal Distance
150/200mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤15kW
Fiber Interface
Q+/QD/QBH/ADD
Focal Distance
200mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤20kW
Fiber Interface
Q+/QD/QBH/ADD
Focal Distance
200mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤30kW
Fiber Interface
Q+/QD/QBH/ADD
Focal Distance
200/300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤40kW
Fiber Interface
Q+/QD/QBH/ADD
Focal Distance
300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤60kW
Fiber Interface
Q+/QD/QBH/ADD
Focal Distance
300mm
Laser Wavelength
1030~1090nm
