Import nc1 to CloudNest and Recognize the Bevel

Function description

If a weld mark was made during Tekla modeling, the component can be exported as an nc1 format file and imported to CloudNest, allowing for direct identification of the groove.



Operation steps

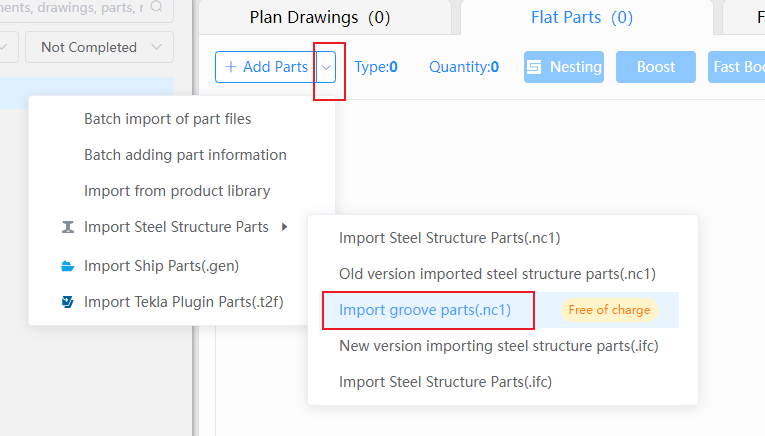

Click [Add Parts] and [Import Groove Parts (.nc1)].



Select [Batch Upload] or [Manual Upload]

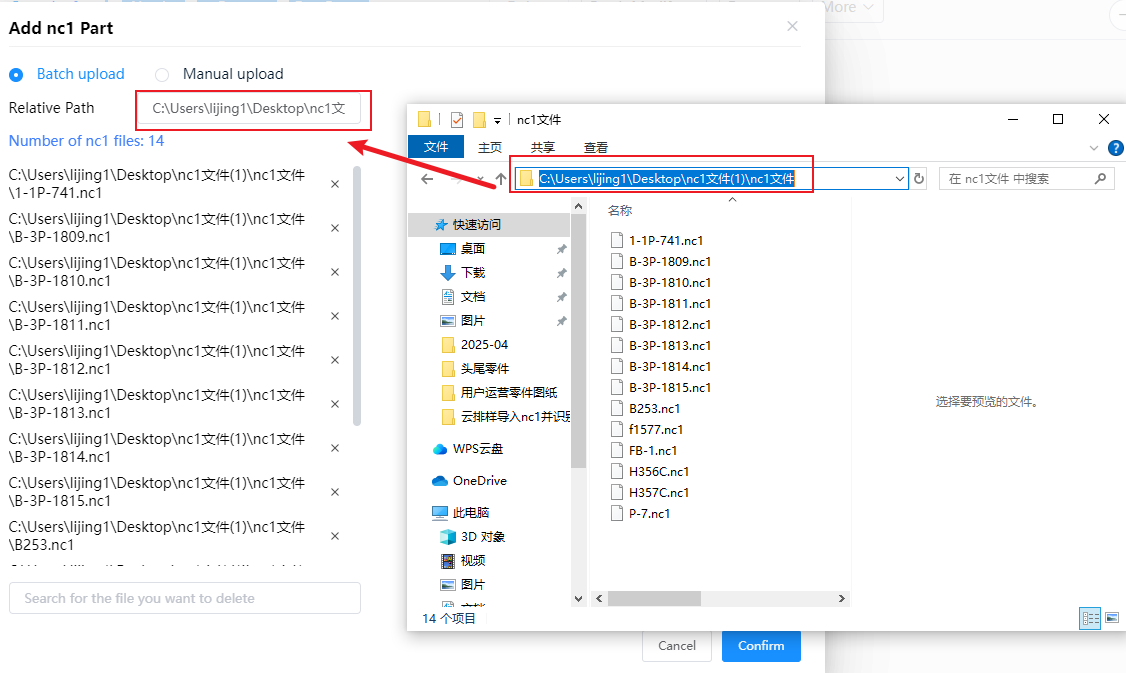

  • Batch upload

Input the path of nc1 files, click on a blank area with the mouse.

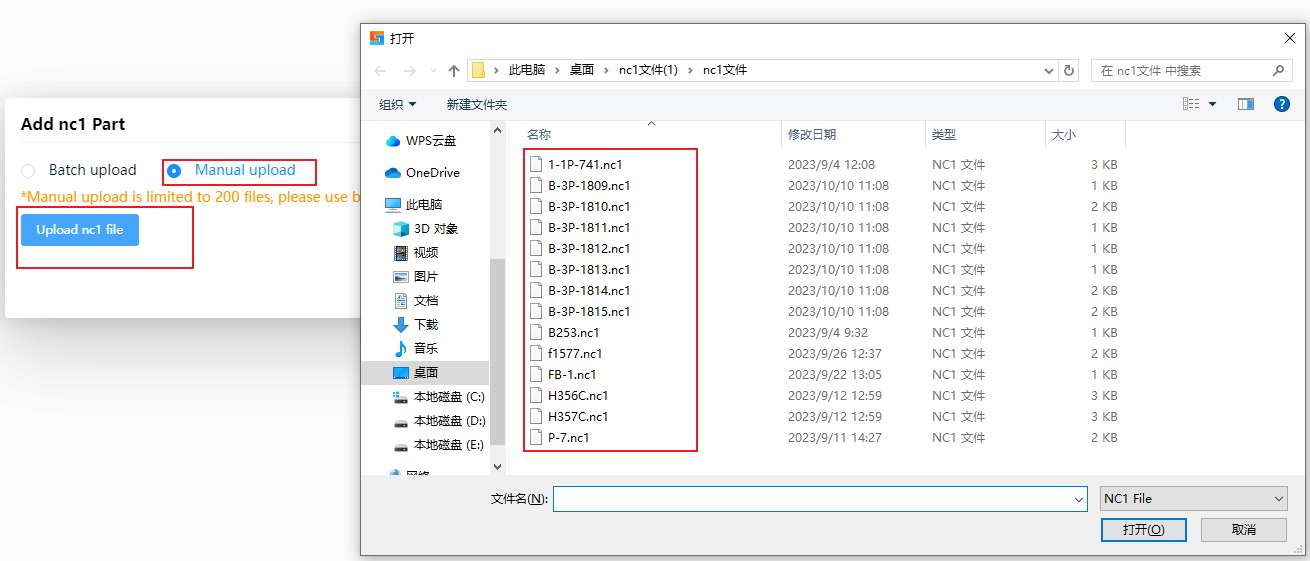

  • Manual upload

Click [Upload nc1 file] to find the location of the files and select them.

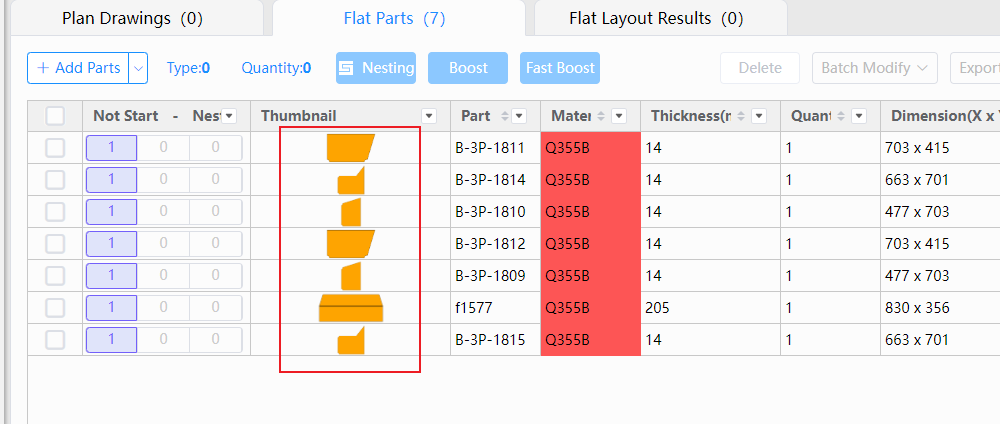

Click [Confirm] to upload the parts to CloudNest, groove parts are filled in yellow.

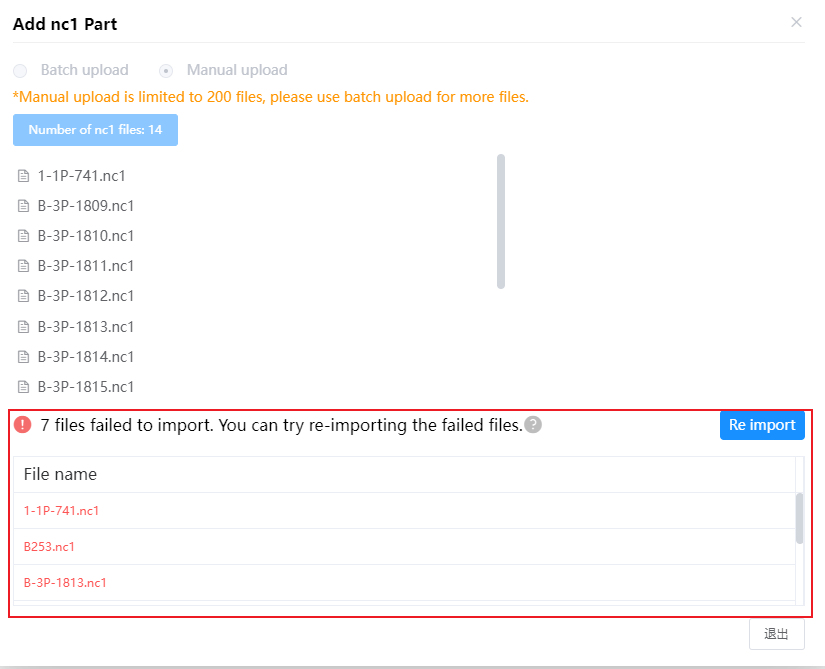

Note 1: If there is a problem with the nc1 file or it is of an unsupported type, the software will give a prompt.

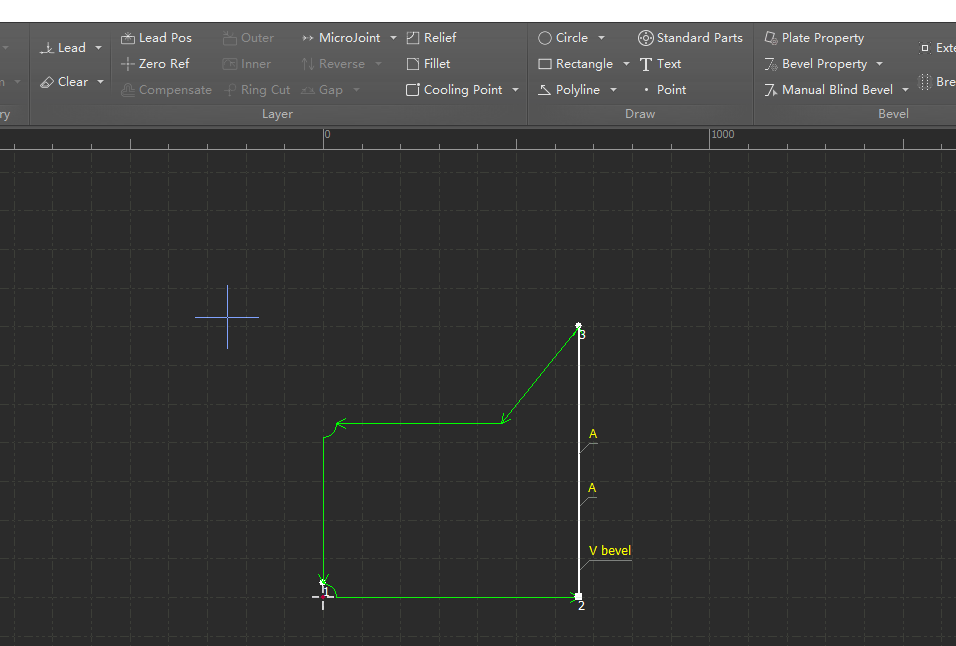

Note 2: Double-click the part to enter the bevel nesting editor.
