Machining rectangular pipe without chamfer, if the drawing is drawn without chamfer, you can use Quick Rectangular Path to generate a special toolpath for the drawing.
In version 7.1.37.1 and later, Quick Rectangular Path function has been moved to the <Curve Tool> drop-down menu, as shown in the following:

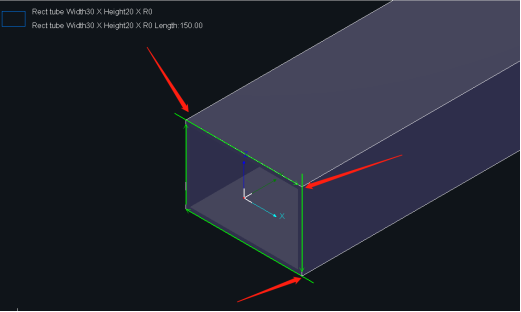

When you applied it, the cutting path will be changed as below,
Here is the cutting result:
Note:
If the rectangular imported has chamfers, then this function can not be used.
Machining rectangular pipe without chamfer, if the drawing is drawn without chamfer, you can use Quick Rectangular Path to generate a special toolpath for the drawing.
In version 7.1.37.1 and later, Quick Rectangular Path function has been moved to the <Curve Tool> drop-down menu, as shown in the following:
When you applied it, the cutting path will be changed as below,
Here is the cutting result:
Note:
If the rectangular imported has chamfers, then this function can not be used.
