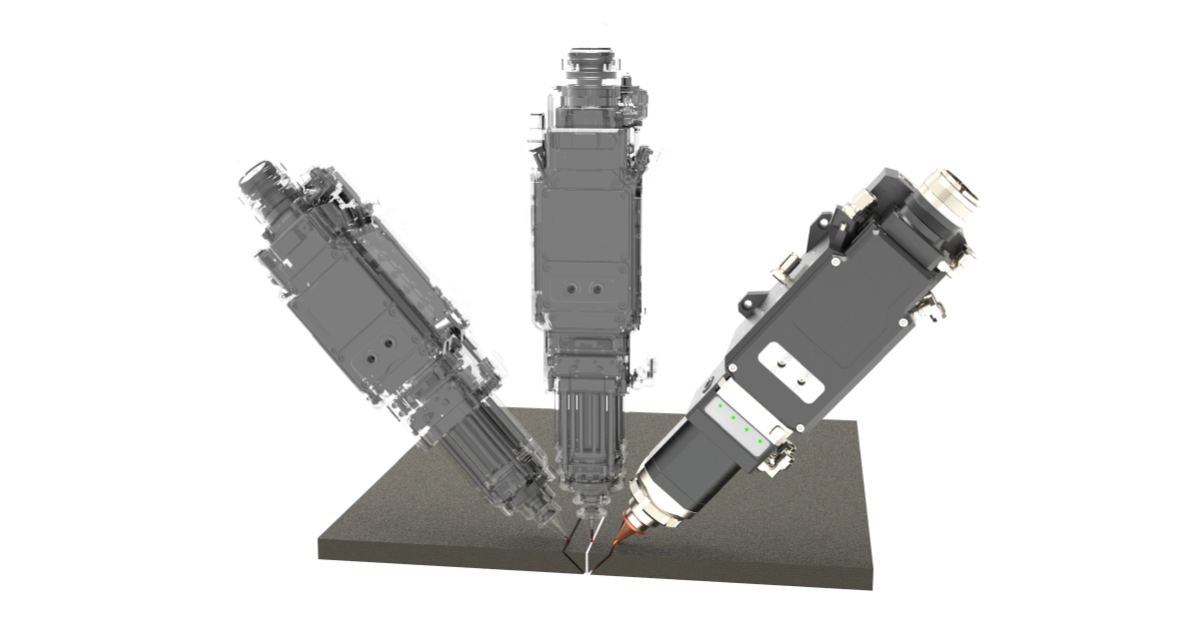

Bevel Cutting
With AB swing axis can support cutting V, Y, X and other types of bevels, maximum ±45° bevel and one time forming, reducing beveling process, reducing cost and increasing efficiency.
-

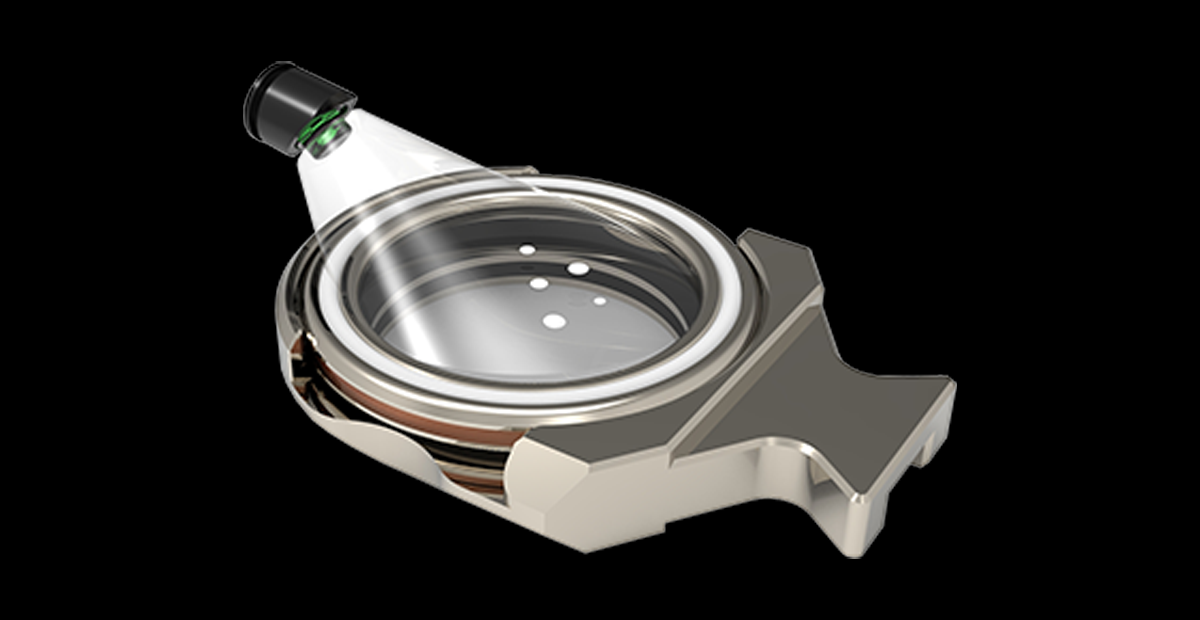

Protective Window Monitoring
Monitor the contamination to avoid its impact on cutting quality.
-

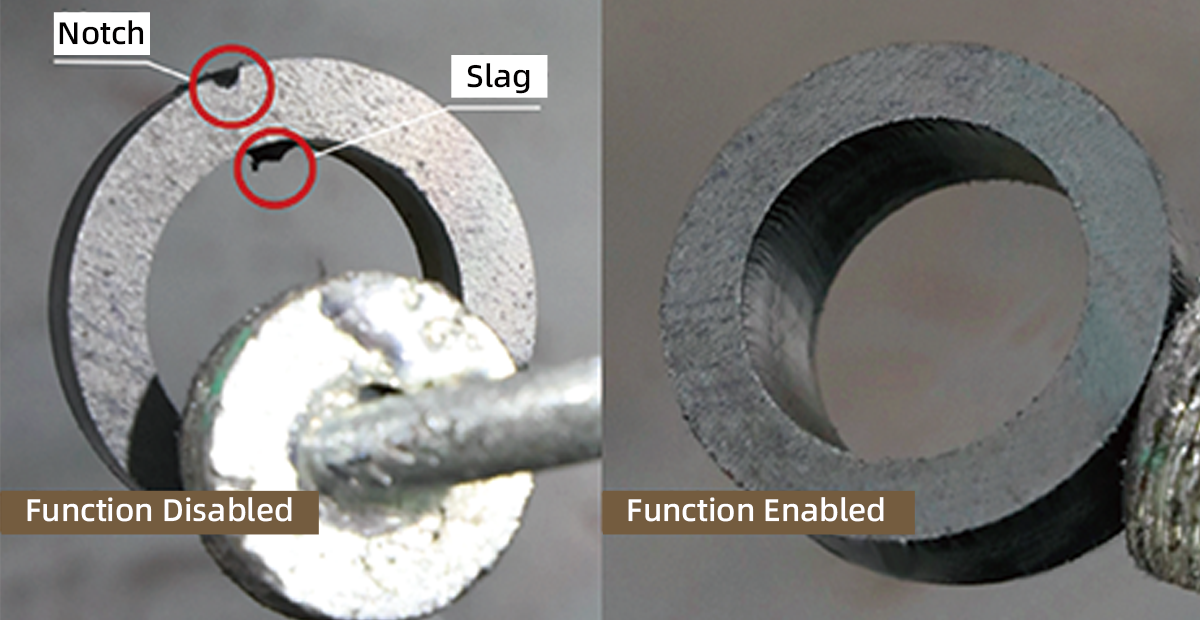

Smart LaserOff
Section and surface finish of inner and outer contours of parts are smooth without slag.
-

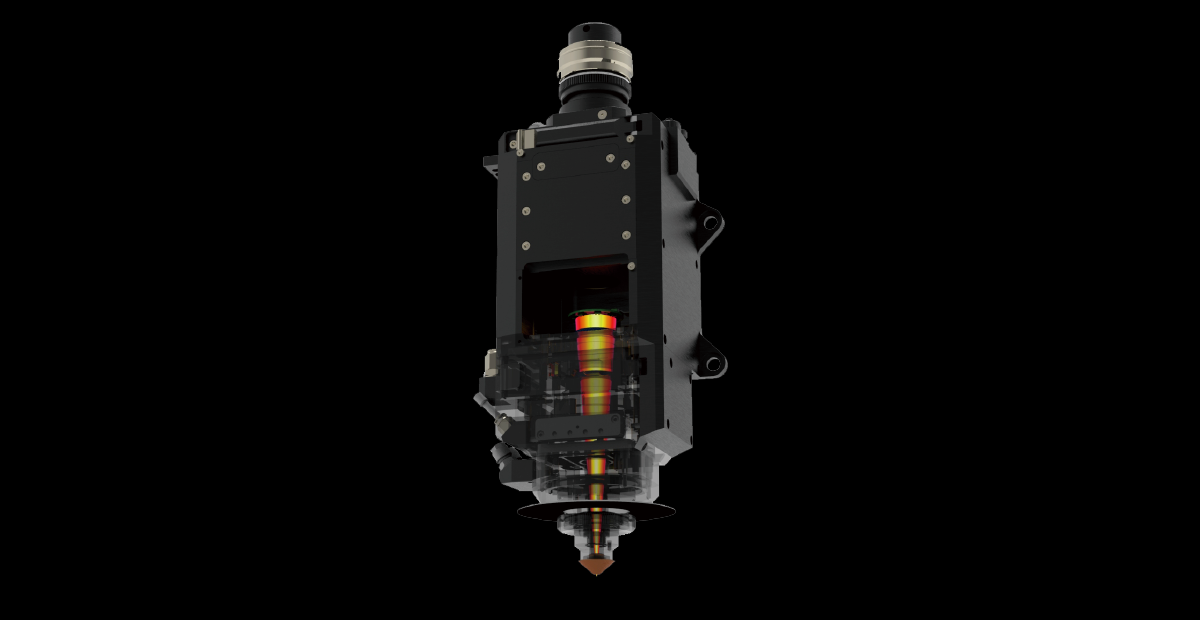

Protective Window Anti-Explosion
Contamination sensor and system algorithms are upgraded to monitor the stray light of the protective window in real-time.
-

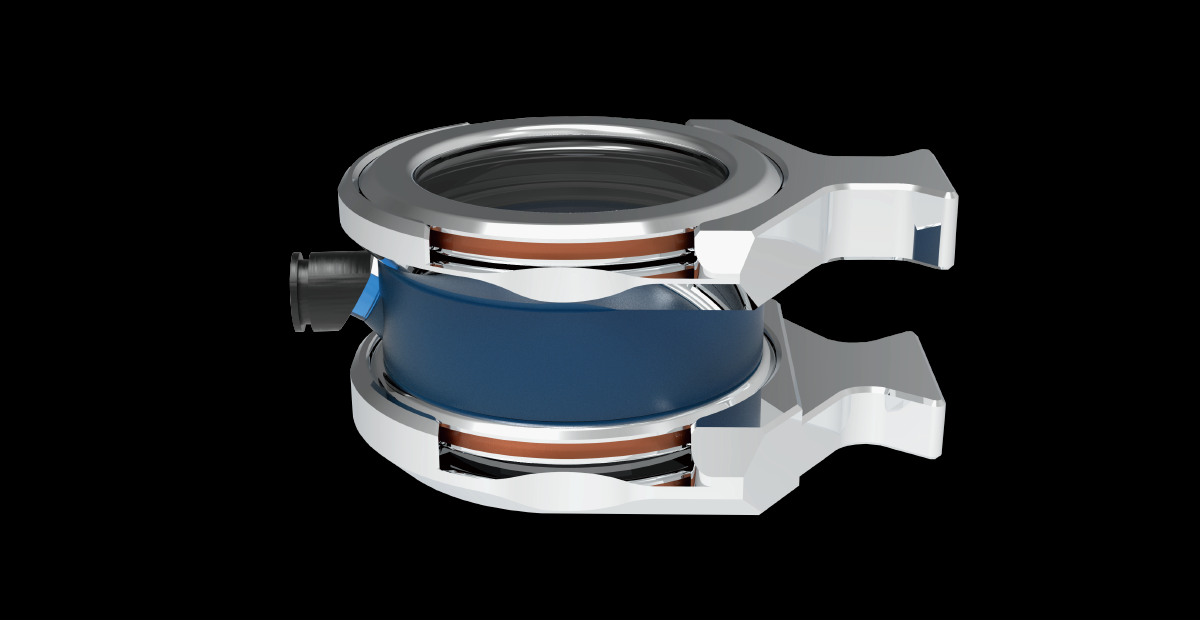

Bottom Protective Cartridge Sealing
Monitor the sealing of the protective windows cartridge for stable production.
-
Bevel Cutting
-
Protective Window Monitoring
-
Smart LaserOff
-
Protective Window Anti-Explosion
-
Bottom Protective Cartridge Sealing

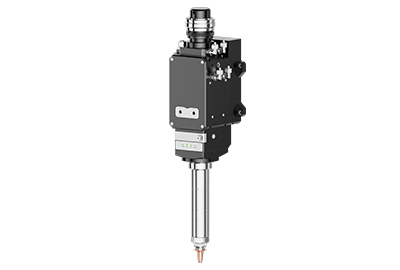

Model & Specifications
-
BLT442P
-
BLT462P
-
BLT482P
-
BLT4102P
-
Specifications
Power Range
≤15kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
250/300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤20kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
250/300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤30kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
250/300mm
Laser Wavelength
1030~1090nm
-
Specifications
Power Range
≤40kW
Fiber Interface
Q+/ADD/QBH/QD
Focal Distance
250/300mm
Laser Wavelength
1030~1090nm
